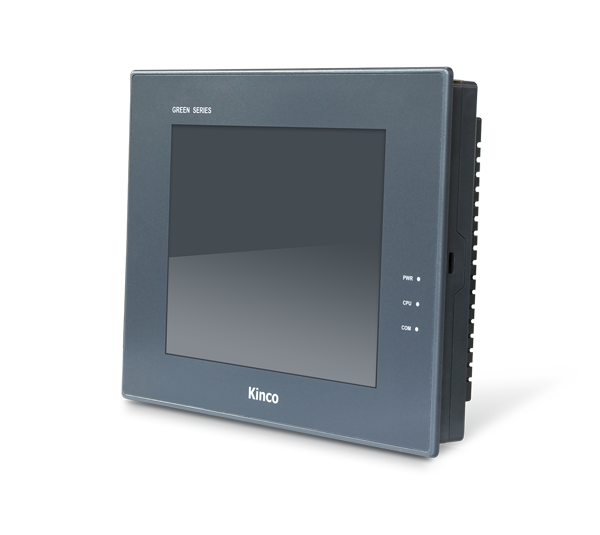

GH104E
Kinco HMI GREEN Series

High reliable for applications.

Three-proof spraying, multiple isolation.

Up to 4 serial ports and SD card extensions.

Industrial size ratio 4:3, display area 20% larger than widescreen.

SPECIFICATION
Performance Specification
Display size

10.4" TFT

Display area

211.2(W)×158.4(H)

Resolution

800×600 px

Display color

16.77M true color

Visual angle

70/70/60/70(L/R/U/D)

Contrast

500:1

Backlight

LED

Luminance

350cd/m²

LCD life

More than 30000 hours

Touch panel

4-wire precision resistance network (surface hardness 4H)

CPU

ARM RISC 32Bit 800MHz

Memory

128MB NAND flash + 128MB DDR3 RAM

RTC

Built-in RTC

External storage

1USB Host + 1SD Card

Printer port

USB Host/Serial port

Ethernet

10/100M adaptable Ethernet interface

Program download

USB Slave(Type B)/U Disk/Ethernet

Communication

COM0: RS232/RS485/RS422. COM1: RS232/RS485/RS422. COM2: RS232. COM3: RS485

Serial port isolated

Built-in

Electrical Specification
Input range

DC12V~DC28V, inbuilt isolated power supply

Power

8W@24VDC

Allowable loss of power

<3ms

Insulation resistance

Over 50MΩ@500V DC

Hi-pot test

500V AC 1 minute

Structure specification
Shell material

Engineering plastics

Shape size

310×230×56 (mm)

Cutout size

299×219 (mm)

Weight

1.715Kg

Environmental Specification
Working temperature

-10~55℃

Working humidity

10~90%RH (non-condensing)

Storage temperature

-20~60℃

Storage humidity

10~90%RH (non-condensing)

Sine vibration test

10~500Hz, 30m/s², X,Y,Z direction/hour

Cooling mode

Natural air cooling

Product Certification
Panel protection grade

Conforming to IP65 certification (4208-93)

CE certification

CE: EN61000-6-4:2007+A1:2011,EN61000-6-2:2005

Software
Configuration software

Kinco DTools V3.3 and above version


Notes: GH104E is a replacement model for MT4523TE.

The old version of the project can be opened directly by DTools software and downloaded to the new HMI.




© Kinco Electric(Shenzhen) Ltd.
