4.3-inch 800*480 high-definition display with 16.77 million true colors
80/80/80/80 wide viewing angle display.
Dual-core CPU with 256MB memory and 4GB flash storage.

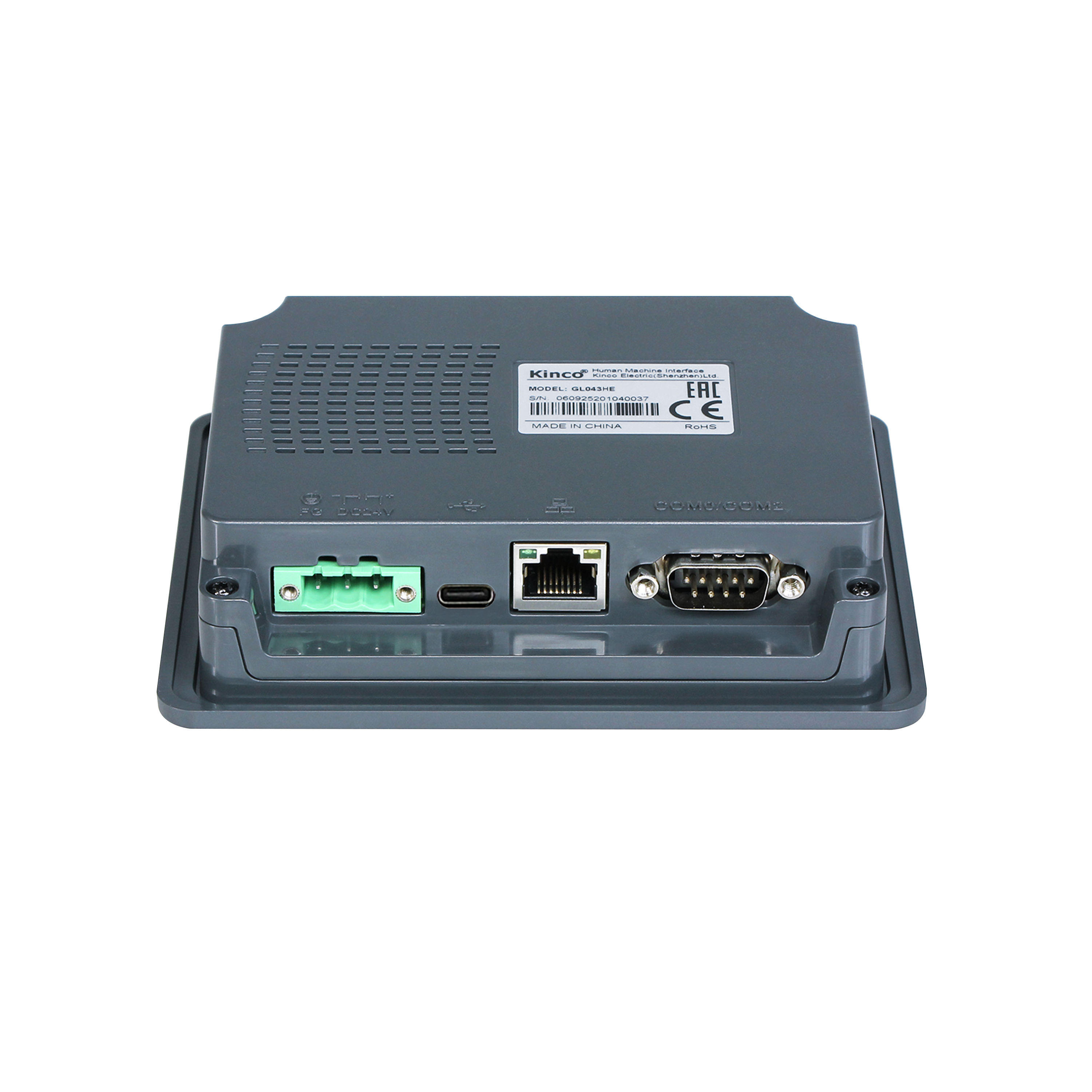

Single Ethernet port and dual serial ports and a USB Host, offering rich interfaces.
Based on the latest EdgeAccess 2.0 version, enjoy seamless loT connectivity.
Based on the latest Kinco Dtools Pro configuration software.
4.3" TFT
95.04(H)×54.71(V)
800*480px
16.77M
80/80/80/80(L/R/U/D)
1200:1
LED
350cd/m²
30000 hours
4 line precision resistance network（surface hardness 4H）
ARM Cortex-A7 duad-core 1GHz
4GB eMMC+256MB RAM
Built-in
USB Host/Serial port
LAN0:10/100 Mbps
USB Slave(Type-C)/U disk/Ethernet port
Ethernet
USB Slave(Type-C)/U disk/Ethernet port
COM0:RS232/RS485/RS422;COM2:RS232
DC10V～DC28V
2W@DC24V
<3ms
Over 50MΩ@500V DC
500VAC 1 minute
None
Engineering plastic
132*102*33mm
119*93
0.21KG
0~50℃
10~90%RH (non-condensing)
-20~60℃
10~90%RH (non-condensing)
10~500Hz, 30m/s², X,Y,Z direction/hour
Natural air cooling
Conforming to IP65 requirements
EN61000-6-4:2007+A1:2011, EN61000-6-2:2005
Kinco DToolsPro
