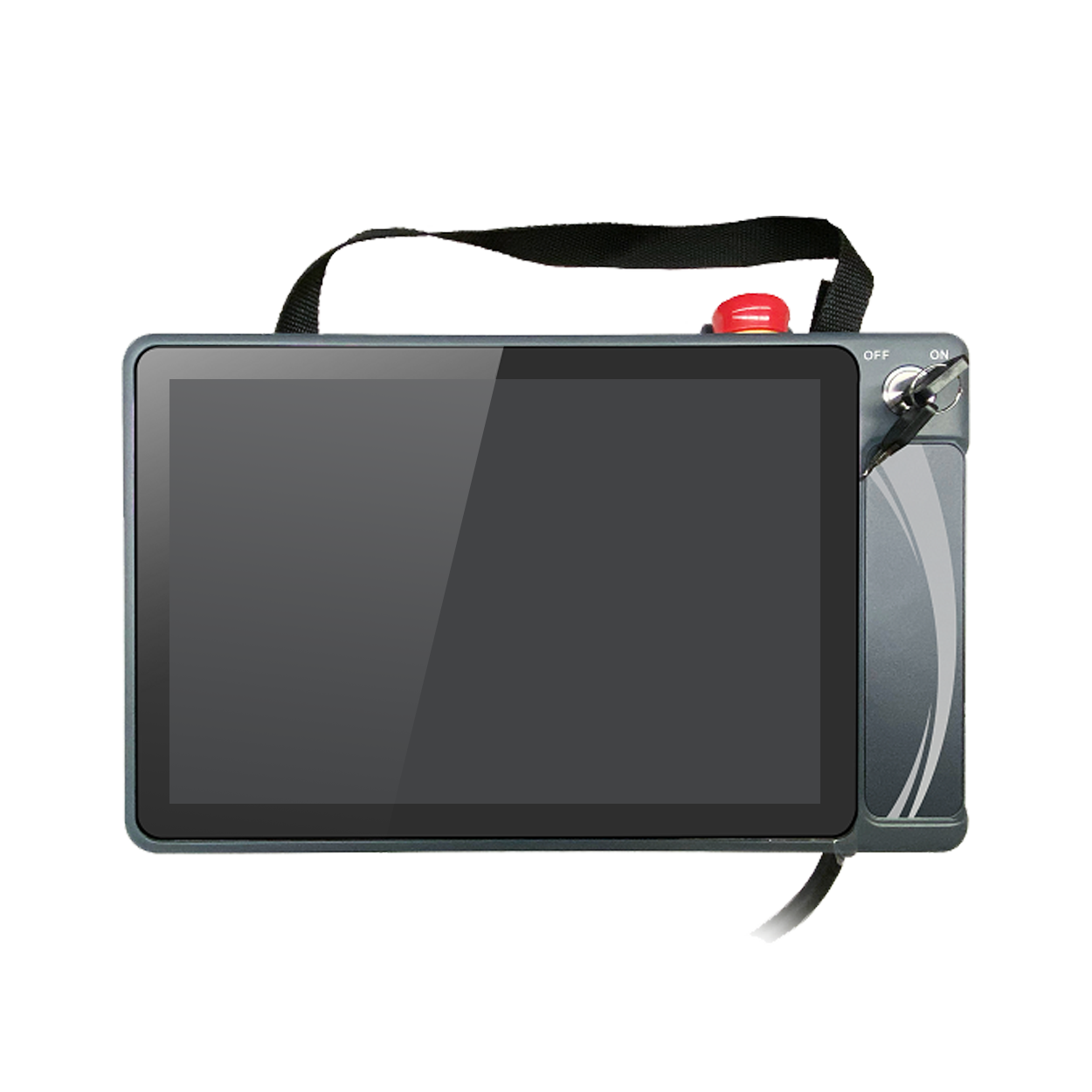

10.1 inches, 800*1280 high-definition display with 16 million true colors;
85/85/85/85 wide viewing angle display;
Quad-core 1.5GHz CPU with 512MB memory and 4GB flash storage;
Single Ethernet port plus three serial ports；
Based on the latest Kinco DToolsPro configuration software & EdgeAccess2 remote maintenance platform.
10.1" TFT
133(H)×215(V)
1920*1200pixel
16.77M
85/85/85/85(L/R/U/D)
600:1
LED
230cd/m²
30000 hours
6 (Optional)
1 Dual-oop emergency stop switch
1 key rotary switch
1 Dual-oop three-segment enable switch
Built-in
Reinforced glass capacitive touch panel
Quad-core ARM 1.8GHz
8GB eMMC+ 1GB RAM
Built-in
Built-in
1 USB Host
USB Host/Serial port
LAN0:10/100 Mbps
U disk/Ethernet port
Ethernet
COM0:RS485/RS422;COM2:RS232
DC23.2V～DC26.4V(built-in isolation power supply)
20W@DC24V
<3ms
Over 50MΩ@500V DC
500VAC 1 minute
YES
Engineering plastic
300.64*187.54*69.69
10m flexible cable(standard)，7m spring cable(optional)
192*138
Buckle installation or VESA bracket(75x75mm)
0~60℃
10~90%RH (Non-condensing)
-20~70℃
10~90%RH (non-condensing)
10~500Hz, 30m/s², X,Y,Z direction/hour
Natural air cooling
IP62 certifile
EN IEC 61000-6-2:2019,EN IEC 61000-6-4:2019
Kinco DToolsPro
